IES-EV-356

KEY TECHNICAL SPECIFICATIONS

• Hybrid Engine Training Model

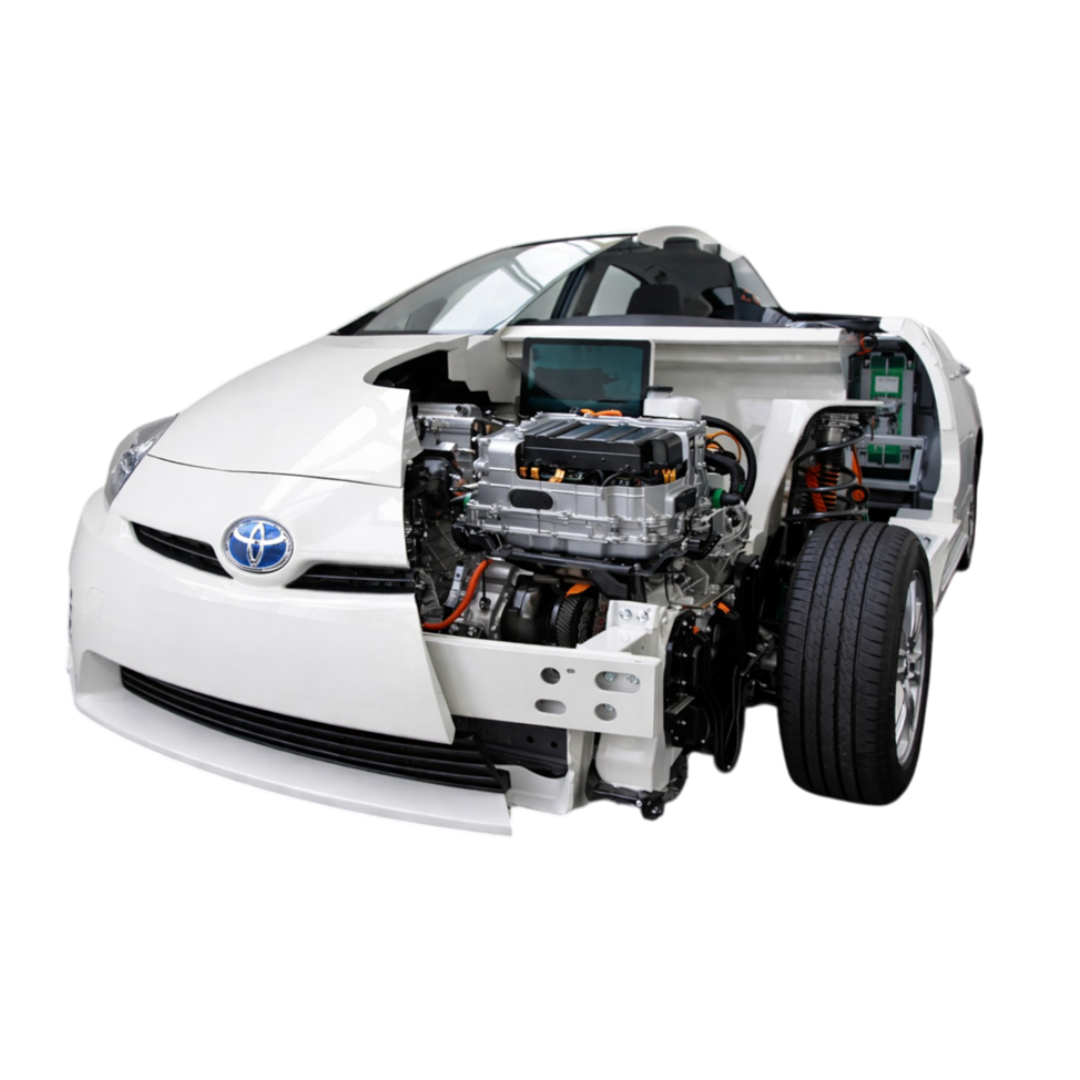

  Cut-section hybrid petrol engine demonstration platform designed for educational and laboratory use.
• Internal Combustion Engine Module
  Multi-cylinder petrol engine model with sectioned components for visualization of internal mechanisms.
• Valve Train & Fuel System Representation
  Demonstration of valve mechanism and fuel injection system for understanding engine operation.
• Hybrid Motor & Generator Unit
  Electric motor/generator module illustrating hybrid power assistance and energy sharing principles.
• Transmission & Drivetrain System
  Belt or CVT transmission arrangement with exposed gear and differential components for studying mechanical power transfer.
• Cut-Section Construction
  Major engine components sectioned and color-coded to clearly display internal structure and working mechanisms.
• Operation Mode
  Manual demonstration mode allowing safe observation of moving engine and drivetrain components.
• Mechanical Mounting Structure
  Rigid mild-steel or aluminium frame mounted on wheels/castors for mobility and stable classroom installation.
• Documentation & Training Support
  Instruction manual, component identification chart and training reference materials.

RANGE OF EXPERIMENTS

• Demonstration of hybrid power flow between engine and motor
• Study of interaction between internal combustion engine and electric motor
• Observation of transmission and drivetrain motion
• Study of valve train operation and fuel injection mechanism
• Demonstration of hybrid regenerative energy concept
• Identification of major hybrid vehicle powertrain components

FEATURES

• Hybrid petrol engine cut-section demonstration model

• Color-coded internal components for easy understanding

• Visible motor and drivetrain mechanisms for training

• Mobile frame-mounted structure for laboratory use

• Suitable for classroom teaching and technical workshops

• Designed for hybrid vehicle technology education and demonstration
